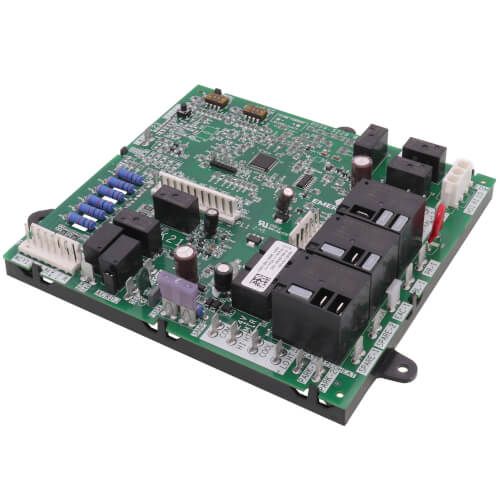

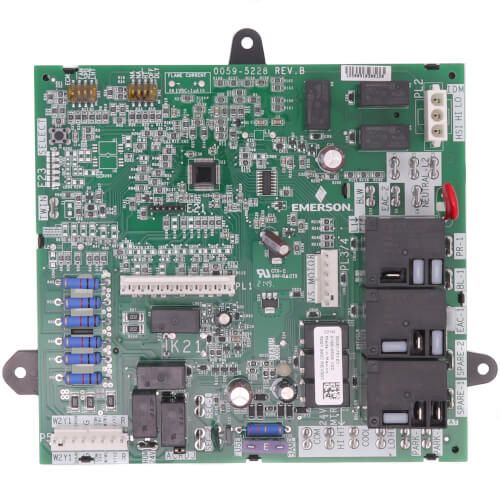

White Rodgers 21V51D-751 - Carrier and ICP Two-Stage HSI Integrated Furnace Control Kit
White Rodgers 21V51D-751 - Carrier and ICP Two-Stage HSI Integrated Furnace Control Kit
The White Rodgers 21V51D-751 is a factory-recommended integrated furnace control kit designed for two-stage HSI (Hot Surface Ignition) systems, specifically compatible with Carrier and ICP furnaces. This kit replaces a variety of OEM control boards, restoring system functionality with reliable ignition, fan timing, and safety controls in one unit.
Product Highlights:
- Two-Stage Operation: Supports high and low heat stages for improved comfort and efficiency.
- Hot Surface Ignition: Provides reliable, direct ignition with improved energy efficiency.
- Three-Speed PSC Blower Support: Controls low, medium, and high blower speeds.
- Universal Application: Designed to replace multiple OEM Carrier/ICP control boards.
- Flame Current Monitoring: Enhances safety by detecting flame presence and terminating gas if undetected.
- Status LED: On-board diagnostics with fault recall and troubleshooting codes.
- Time Delays: Adjustable blower on/off delay settings for custom comfort control.

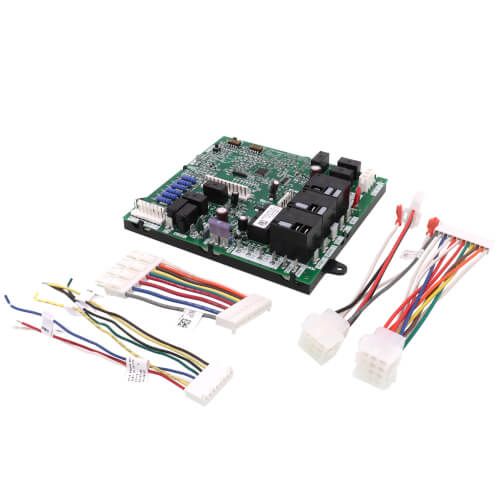

Kit Includes:
- Integrated furnace control board
- Wire harness adapters
- Installation manual and mounting hardware
Electrical Ratings:
- Voltage: 24V AC control
- Frequency: 60 Hz
- Inducer and blower relay contacts: 12.0 FLA @ 120V
- Ignitor current: 6.0 amps max @ 120V
This replacement control kit offers an exact-fit solution for many two-stage Carrier and ICP systems, ensuring safe and efficient operation while simplifying service and installation.
Now available at Beenimax – your reliable source for HVAC solutions.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
