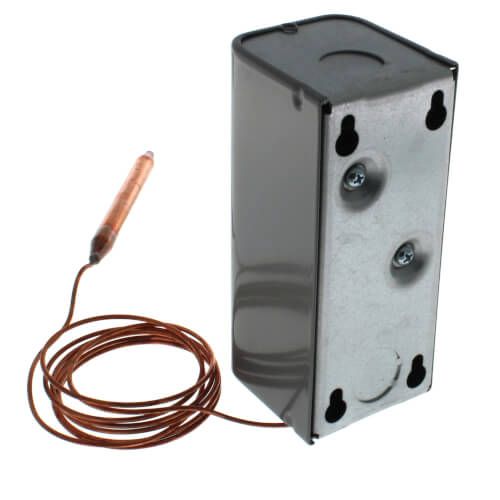

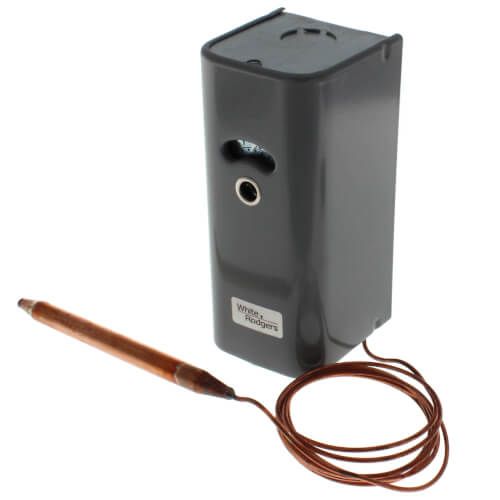

The White Rodgers 230-22 is a robust and reliable line voltage temperature control designed for precise regulation in heating and ventilation systems. Featuring a Single Pole, Single Throw (SPST) switch that opens on temperature rise, it is ideal for applications requiring the interruption of electrical circuits as temperatures increase.Key Features:
This temperature control is commonly used to regulate duct temperatures in conjunction with air handling units or to control circulators for indoor-outdoor regulation from a remote point. Its high electrical rating allows for direct operation of most equipment without the need for relays or motor starters. The dustproof steel case is designed for durability, and the temperature dial is visible and adjustable through the cover, which has knockouts on the top and bottom for flexible installation.Available now at Beenimax — your trusted source for HVAC parts.
- Temperature Range: Adjustable from 20°F to 120°F
- Differential: Adjustable between 4°F and 30°F
- Switch Action: SPST – Opens on temperature rise
- Capillary Length: 8 feet
- Bulb Size: 6-1/4" x 3/8"
- Electrical Ratings:
- 14.0 A AFL at 120 VAC
- 7.0 A AFL at 240 VAC
- 25.0 A resistive at 120 VAC
- 22.0 A resistive at 240 VAC
- Enclosure Dimensions:
- Height: 5.75"
- Width: 2-5/16"
- Depth: 2-9/16"
- Color: Gray
