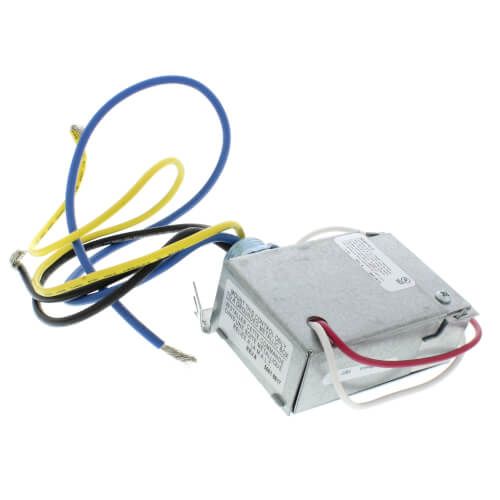

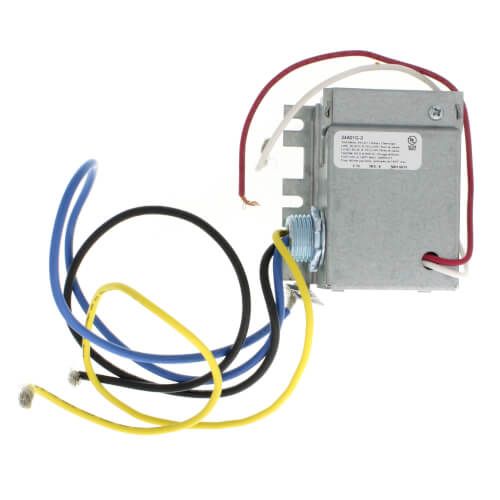

The White Rodgers 24A01G-3 is a robust electric heat relay designed for residential and light commercial HVAC systems. Operating at 240VAC, this SPST (Single Pole Single Throw) relay is ideal for controlling electric heating elements and other resistive loads. Its Level-Temp Silent Operator feature enables low voltage 2-wire thermostats to control line voltage loads such as baseboard heaters. The relay incorporates a 45-second average time delay to prevent short cycling, enhancing system longevity. With a durable construction and versatile mounting options, it ensures reliable performance in various electric heating applications.Key Specifications:

• Voltage: 240 VAC
• Frequency: 60 Hz
• Type: SPST (Single Pole Single Throw)
• Contact Position: Normally Open
• Time Delay: 45 seconds average
• Wiring: 18" lead wires
• Ambient Temperature Range: -20°F to 120°F
• Thermostat Current: 0.2 A

Electrical Ratings:

• AFL (Amperes Full Load): 12 A @ 240 VAC
• ALR (Amperes Locked Rotor): 72 A @ 240 VAC
• A.C. Resistive Load: 25 A @ 240 VAC (6000 W)

Dimensions:

• Height: 1-7/8"
• Width: 4-1/2"
• Depth: 2-7/16"

Mounting:

• Conduit hub or screw mounting

Features:

• Level-Temp allows low voltage 2-wire thermostat to control line voltage loads
• Universal break-off mounting tabs
• Non-critical mounting angle
• Dual Level-Temp capable of controlling two separate loads

This relay is ideal for applications requiring reliable control of electric heating systems, such as baseboard heaters, fan coils, and other resistive heating elements. Its design facilitates easy integration into existing systems, ensuring efficient and safe operation.Available now at Beenimax – your trusted source for HVAC parts.
