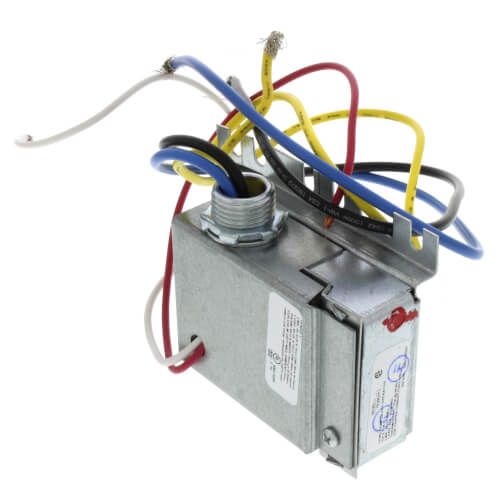

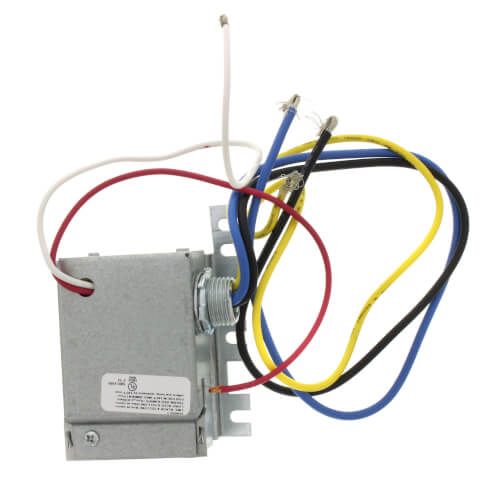

The White Rodgers 24A05Z-1 is a heavy-duty electric heat relay designed for use with 277V single-phase heating systems. Engineered to handle high amperage loads, this surface-mount relay is ideal for controlling electric heaters, fan coils, and baseboard heating units in both residential and commercial settings.Specifications:

• Voltage Rating: 277 VAC, 60 Hz
• Contact Type: SPST (Single Pole, Single Throw) Normally Open
• Full Load Current: 25 Amps @ 277 VAC
• Resistive Load: 30 Amps @ 277 VAC
• Pilot Duty: 125 VA @ 24 VAC
• Coil Voltage: 24 VAC
• Coil Power: 2.1 VA
• Mounting: Surface mount
• Operating Temperature Range: -40°F to 150°F
• Agency Approvals: UL Recognized

Features:

• Quick-connect terminals for easy wiring
• Compact design for space-constrained applications
• Durable construction for long-lasting performance
• Ideal for switching electric heat loads using low-voltage control signals

The 24A05Z-1 offers a reliable solution for electric heat control with a simple, cost-effective design.Available now at Beenimax.com — trusted by professionals for quality HVAC parts.
