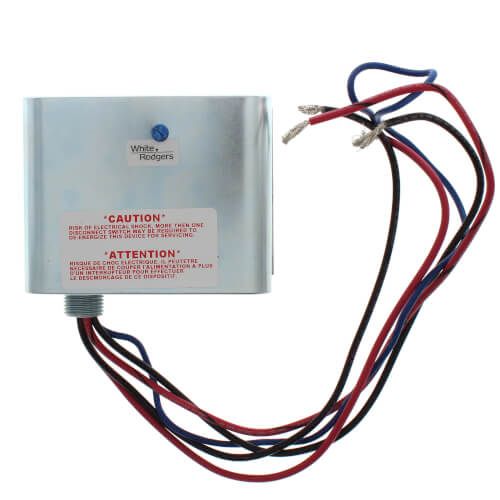

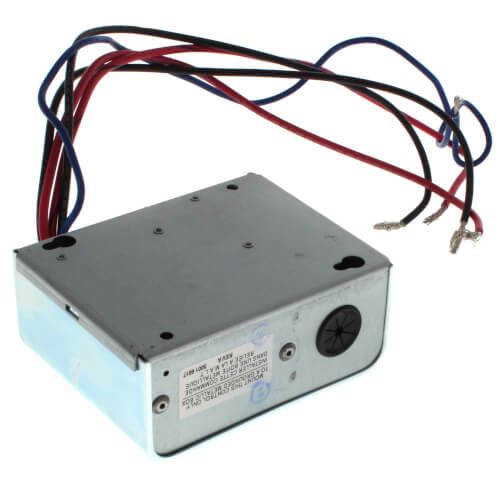

The White Rodgers 24A06G-1 Electric Heat Relay is a dependable solution for controlling electric heating systems, such as baseboard heaters. Designed for seamless compatibility with low-voltage thermostats, this DPST (Double Pole, Single Throw) relay operates at 240VAC and ensures reliable switching performance for resistive and motor loads.With a rugged open-type design, it offers quiet operation, easy installation, and long-lasting durability—ideal for residential and light commercial electric heating applications.Key Specifications:
- Voltage: 240VAC, 60 Hz
- Configuration: DPST (Double Pole, Single Throw), Normally Open
- Thermostat Current: 0.2 Amps
- Resistive Load: 25 Amps @ 240VAC (6000 Watts)
- Motor Load: 12A Full Load / 72A Locked Rotor @ 240VAC
- Ambient Temperature Range: -20°F to 120°F
- Lead Length: 18 inches
- Average Time Delay: 45 seconds
- Dimensions: 4-13/16" W x 2-1/8" D x 3-13/16" H
- Certifications: UL and CSA listed
