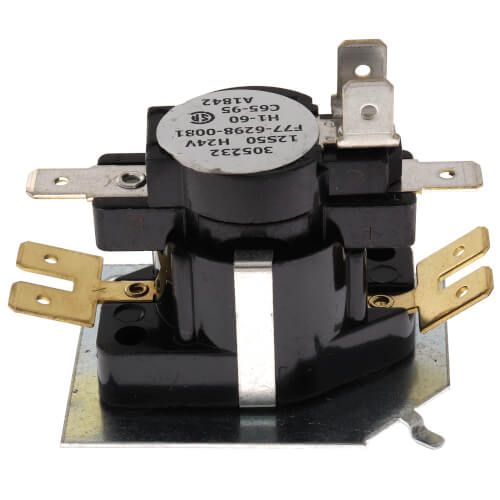

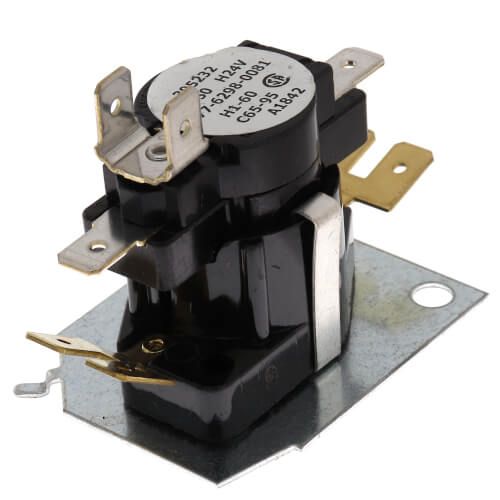

The White Rodgers 24A34-15 Electric Sequencer is a reliable component designed for heat pump air handler applications, ensuring controlled activation and deactivation of heating elements and blowers.

Product Overview:

• Model: 24A34-15
• Application: Heat Pump Air Handlers
• Switches: 1
• Type: SPDT (Single-Pole, Double-Throw)
• Voltage Compatibility: 120V / 240V
• Timing Delays:
  • ON Delay: 1–60 seconds
  • OFF Delay: 75–95 seconds
• Ambient Operating Temperature: -50°F to 165°F

Electrical Ratings:

• Resistive Load Capacity:
  • 25A at 120V (3000W)
  • 25A at 240V (6000W)
• Motor Load Ratings:
  • Full Load (AFL):
    • 14.0A at 120V
    • 7A at 240V
  • Locked Rotor (ALR):
    • 72A at 120V
    • 42A at 240V
• Pilot Duty Rating:
  • 125 VA at 120V
  • 125 VA at 240V

Key Features:

• Precision timing ensures efficient staging of heating elements
• Reduces electrical load surges, enhancing system longevity
• Compatible with both 120V and 240V systems
• Designed for reliable performance in varying ambient temperatures
