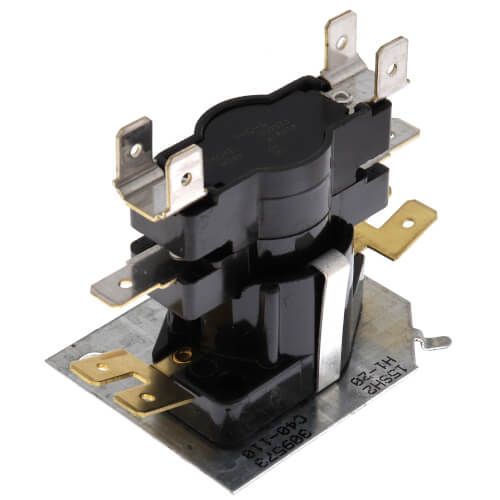

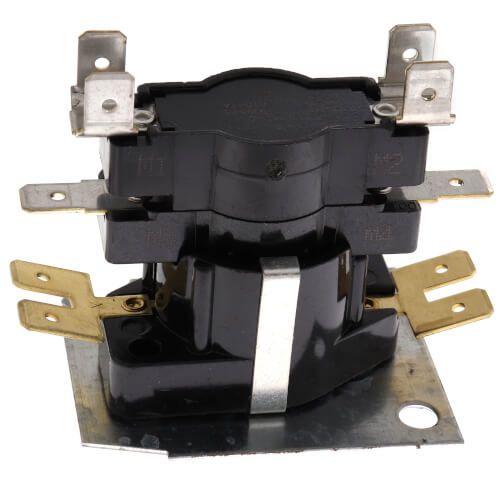

White Rodgers 24A34-4 - Electric Heat Sequencer, 2 Switches. On Timings, 30-90 Sec. Off Timings, 1-30 Sec.
White Rodgers 24A34-4 - Electric Heat Sequencer, 2 Switches. On Timings, 30-90 Sec. Off Timings, 1-30 Sec.
The White Rodgers 24A34-4 is a high-performance electric heat sequencer engineered for controlling multiple heating elements in HVAC systems. Designed with two independently-timed switches, it ensures sequential operation of elements to prevent electrical surges and enhance system reliability.
Technical Specifications:
- Part Number: 24A34-4
- Manufacturer: White Rodgers (a division of Emerson)
- Application: Electric furnaces, air handlers, heat pump systems
- Switches: 2 (single pole single throw per stage)
- Voltage Rating (Control): 24 VAC
- Load Voltage Rating: 120/208/240 VAC
- Full Load Amperage: 25A per switch @ 240 VAC
- Locked Rotor Amperage: 150A
- On Timing Delay: 30 to 90 seconds
- Off Timing Delay: 1 to 30 seconds
- Ambient Temperature Range: -40°F to 160°F (-40°C to 71°C)
- Terminal Type: 1/4" quick connect male terminals
- Mounting Style: Surface mount, vertical orientation recommended
- UL Listed: Yes
- Cycle Life: Rated for over 100,000 cycles
- Construction: Thermally-activated bimetal design
Key Features:
- Dual-switch sequencing for multiple heating stages
- Prevents current surges by staggering element activation
- Compact and durable for easy integration in OEM and aftermarket applications
- Quiet and reliable performance with minimal maintenance
Ideal for HVAC professionals and contractors looking to restore or upgrade electric heating systems with a trusted OEM-grade component.
Available now at Beenimax – your reliable source for HVAC replacement parts.
| Package Quantity | 1 Item |
|---|---|
