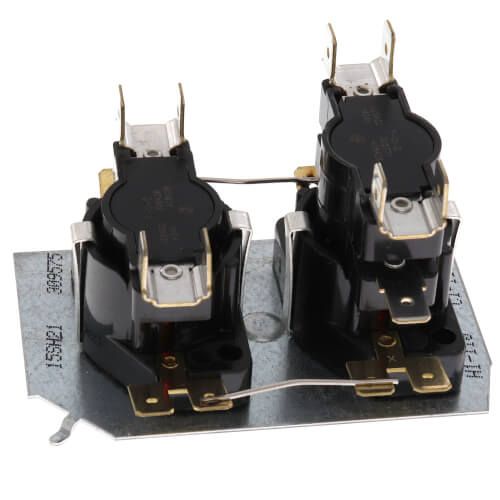

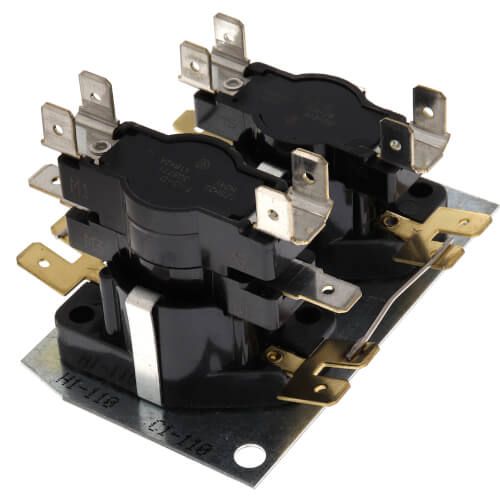

The White Rodgers 24A34-5 Electric Heat Sequencer is engineered for precise multi-stage electric heat control in HVAC systems. Featuring three switches, this sequencer enables sequential activation and deactivation of heating elements, promoting system efficiency and protection.Specifications:

• Model: 24A34-5
• Number of Switches: 3
• On Timings: 1 to 110 seconds
• Off Timings: 1 to 110 seconds
• Control Voltage: 24V
• Operating Voltage Compatibility: 120V, 240V, 480V
• Ambient Temperature Range: -50°F to 165°F
• Mounting: Multi-poise (any position)
• Terminal Configuration: Double quick-connect terminals for combination loads
• Auxiliary Contact Use: Any contact except M1 & M2 can be used as auxiliary contacts

Electrical Ratings:

• Resistive Load:
  • 120V: 25A (3000W)
  • 240V: 25A (6000W)
  • 480V: 12.5A
• Motor Load (AFL):
  • 120V: 14.0A
  • 240V: 7.0A
• Motor Load (ALR):
  • 120V: 72A
  • 240V: 42A
• Pilot Duty Rating:
  • 120V: 125 VA
  • 240V: 125 VA
  • 480V: 480 VA

Features:

• Direct replacement for most fan/heat sequencing functions
• Equivalent terminal markings to competitive brands
• Replaces models from Honeywell, MARS, TOD, GEMLINE, and Klixon (Texas Instruments)
• Suitable for electric furnaces and air handlers
