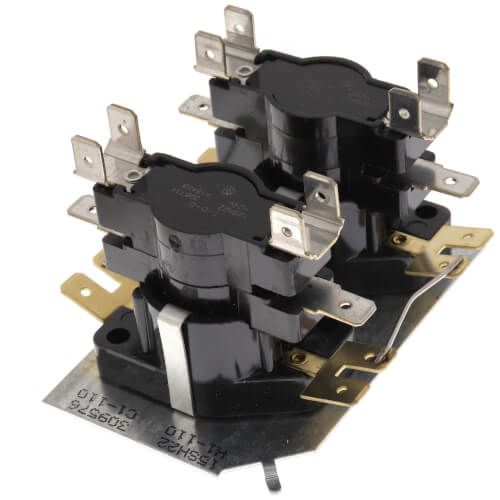

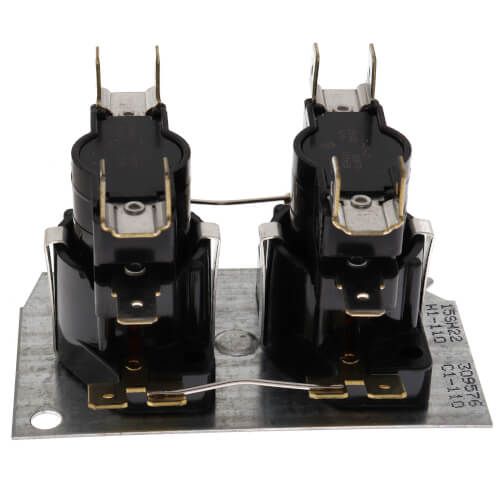

The White Rodgers 24A34-6 Electric Heat Sequencer is a robust and versatile component designed for precise control of electric heating elements and blower motors in HVAC systems. Featuring four SPST switches, it ensures reliable multi-stage heating operations with dependable timing performance.
Key Features:
- Switch Configuration: 4 SPST switches
- Control Voltage: 24 VAC
- On Timing Delay: 1 to 110 seconds
- Off Timing Delay: 1 to 110 seconds
- Mounting Orientation: Multi-poise (vertical or horizontal)
- Ambient Temperature Range: -50°F to 165°F
- Terminal Design: Double quick-connect terminals for combination loads
- Auxiliary Contacts: Any contacts (except M1 & M2) can be used as auxiliary contacts
- Compatibility: Direct replacement for most fan/heat sequencing functions; terminal markings are equivalent to competitive types
Electrical Ratings:
- A.C. Resistive Load:
- 25 A @ 120 VAC (3000 W)
- 12.5 A @ 240 VAC (6000 W)
- Motor Load (AFL):
- 14 A @ 120 VAC
- 7 A @ 240 VAC
- Motor Load (ALR):
- 72 A @ 120 VAC
- 42 A @ 240 VAC
- Pilot Duty Rating:
- 125 VA @ 120 VAC
- 125 VA @ 240 VAC
- 480 VA @ 480 VAC
