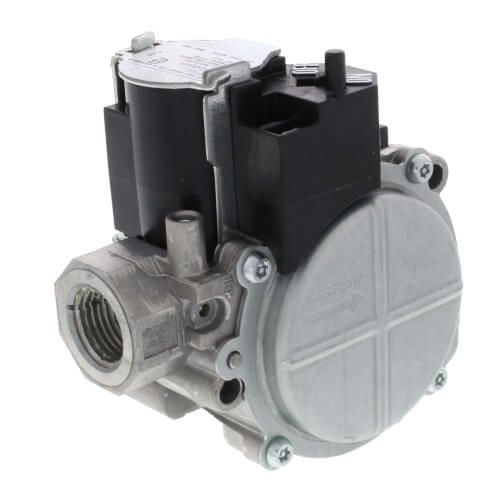

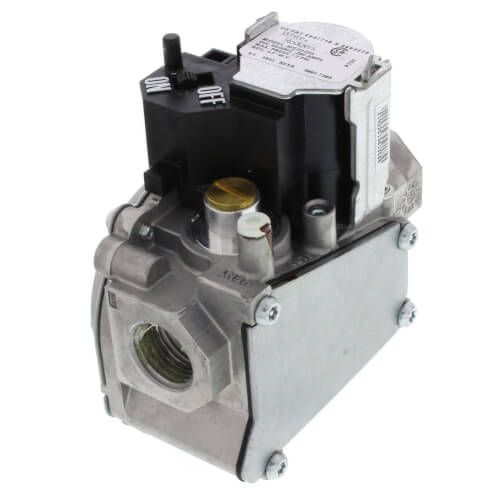

The White Rodgers 36G22-254 is a universal 24V gas valve designed for residential heating systems utilizing Hot Surface Ignition (HSI) or Direct Spark Ignition (DSI). With its 1/2" x 1/2" NPT straight-through configuration, it supports both natural and LP gas systems (LP conversion kit sold separately), making it an ideal choice for furnace retrofits and replacements.Key Specifications:

• Inlet/Outlet Size: 1/2" x 1/2" NPT
• Voltage: 24 VAC, 50/60 Hz
• Ignition Type: HSI/DSI
• Operation: Single-stage, fast-opening
• Flow Direction: Straight-through
• Pressure Rating: 1/2 PSI
• Temperature Range: -40°F to 175°F
• BTU Capacity: Up to 226,800 BTU/hr for LP gas, 140,000 BTU/hr for natural gas
• Features: Redundant and main solenoid valves, built-in pressure regulator, inlet/outlet pressure taps, electric on/off switch, tamper-resistant screws, quick-connect terminals
• Approvals: CSA certified

This valve delivers dependable performance and safety for a wide range of heating applications.
