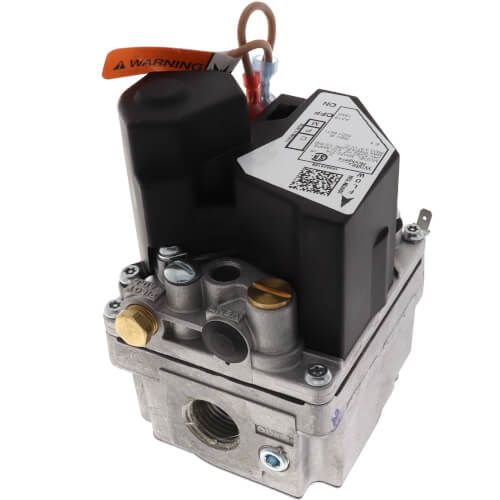

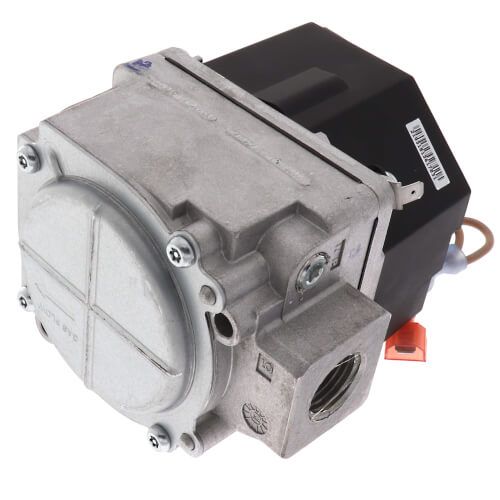

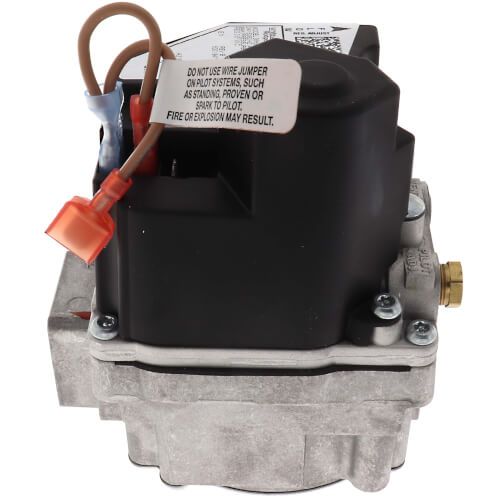

The White Rodgers 36H32-214 is a universal single-stage fast-open gas valve designed for reliable control of natural or LP gas in residential and commercial forced-air furnaces. With its 1/2" x 1/2" NPT threaded connections and 24 VAC operation, it ensures easy installation and consistent performance across a wide range of HVAC applications.Key Specifications:
- Fuel Compatibility: Natural Gas and Propane (LP conversion kit included)
- Voltage: 24 VAC
- BTU Capacity: Up to 240,000 BTU/hr
- Connection Size: 1/2" inlet x 1/2" outlet NPT
- Ignition Compatibility: Hot Surface Ignition (HSI), Direct Spark Ignition (DSI), Intermittent Pilot, Proven Pilot
- Operation: Fast open for quick ignition response
- Body Pattern: Straight-through design
- Additional Features: Inlet and outlet pressure taps, inlet screen, manual shutoff switch, and three 1/4" male spade terminals
