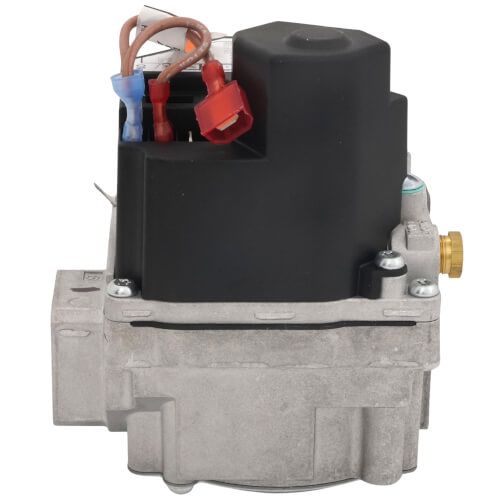

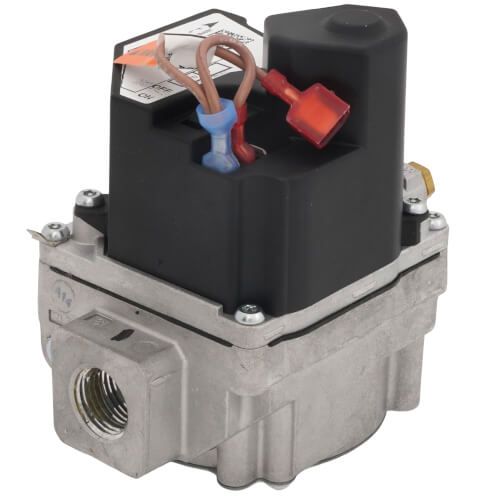

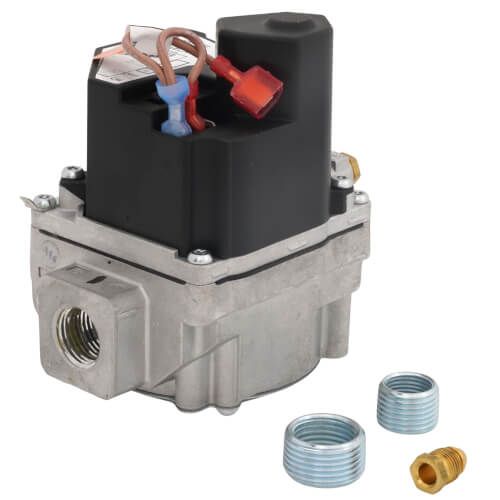

The White Rodgers 36H32-304 is a universal single-stage gas valve designed for use in 24V systems. This fast-opening valve features a 1/2" NPT inlet and 3/4" NPT outlet, making it compatible with a wide range of gas heating appliances. It includes a proven pilot configuration and is suitable for both natural gas and LP (conversion not included).Equipped with a manual electric On/Off switch, the 36H32-304 simplifies control and service operations. The valve also features side and top outlets, adjustable regulator, and inlet/outlet screens for added protection. Its fast-open operation supports quick ignition, helping restore heat quickly and reliably.Specifications:
- Inlet/Outlet: 1/2" x 3/4" NPT
- Voltage: 24 VAC
- Type: Single-Stage, Fast Open
- Pilot Type: Proven Pilot
- Gas Type: Natural Gas (convertible to LP with separate kit)
- Ignition: Intermittent Pilot or Standing Pilot systems
- Switch: Electric On/Off
- Pressure Regulation: Adjustable
- Outlets: Side and top
- Ambient Temperature: -40°F to 175°F
