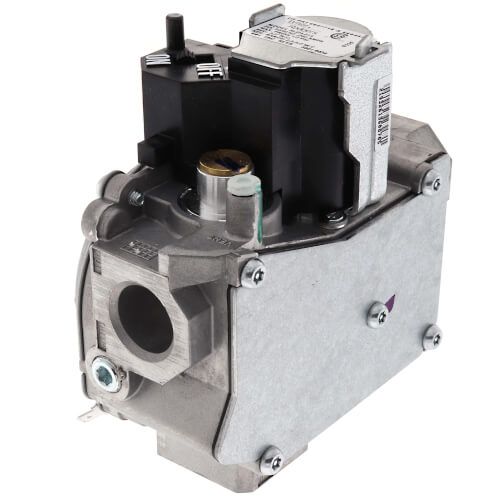

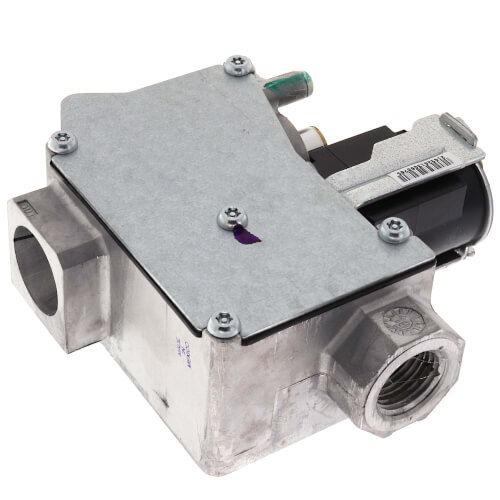

The White Rodgers 36J24-614 is a combination gas control valve designed for single-stage applications, ideal for residential furnaces and heating systems. With a 24V electronic ignition system and built-in redundant safety features, this valve delivers consistent and reliable performance.It features 1/2" NPT inlet and outlet connections and includes a factory-supplied LP conversion kit for flexible fuel compatibility. Designed for use with natural gas out of the box, the unit can be easily converted to propane operation as needed.Specifications:
- Model: 36J24-614
- Type: Single Stage Combination Gas Valve
- Application: Natural Gas (convertible to LP with included kit)
- Voltage: 24 VAC
- Ignition Type: Direct Ignition / Intermittent Pilot
- Inlet/Outlet Size: 1/2" x 1/2" NPT
- Pressure Regulation:
- Natural Gas: 3.5" W.C.
- Propane: 10.0" W.C.
- Maximum Inlet Pressure: 1/2 psi
- Ambient Temperature Range: -40°F to 175°F
- Includes: LP conversion kit, terminal block, and quick-connect terminals
- Agency Certifications: CSA listed
