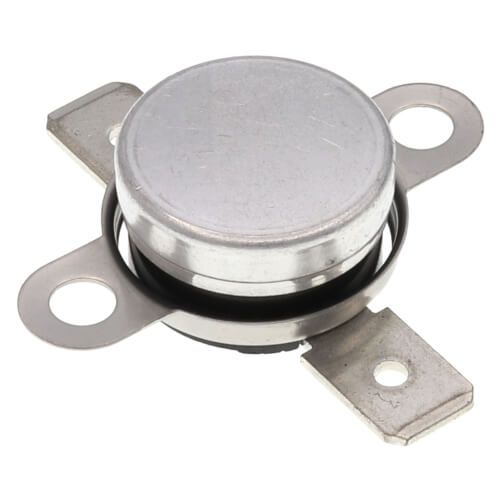

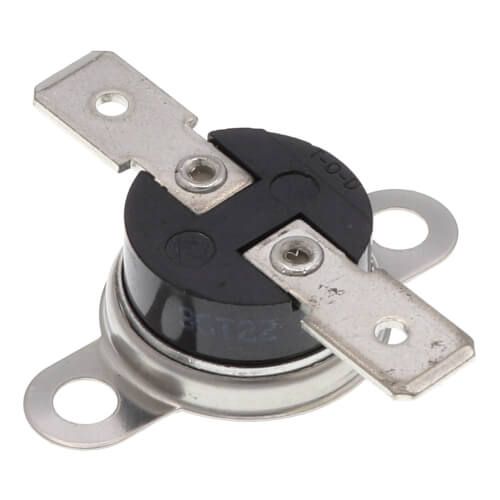

The White Rodgers 3F11-225 is a dependable snap disc fan control switch designed to close on temperature rise. Ideal for fan or high-limit applications, this control is engineered for consistent performance in residential and commercial HVAC systems where accurate thermal response is critical.Specifications:

• Temperature Close Range: 217°F to 232°F (closes on rise)
• Electrical Ratings:
  • 120 VAC: 15.0 FLA / 90.0 LRA / 1000 VA Pilot Duty
  • 240 VAC: 10.0 FLA / 60.0 LRA / 1000 VA Pilot Duty
• Switch Type: SPST (Single-Pole, Single-Throw)
• Mounting Style: Surface mount with 3/4" bimetal disc
• Lead Wires: 6" wire leads for simplified installation
• Maximum Ambient Temperature: 250°F
• Action Type: Snap-action for fast, reliable operation

Common Applications:

• Fan and blower control in furnaces
• High-limit protection in electric heaters
• Auxiliary heat activation in HVAC systems

Count on the White Rodgers 3F11-225 for efficient and reliable temperature control in your heating systems. Available now at Beenimax.
