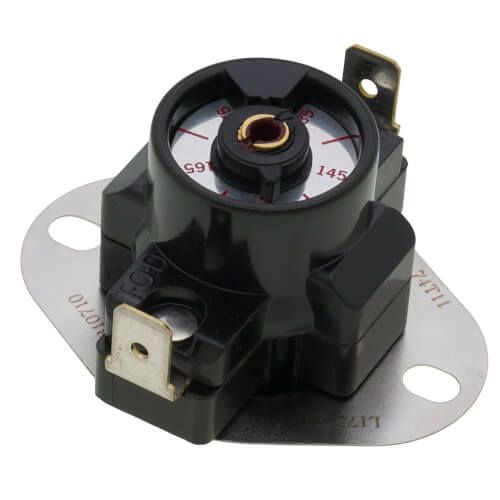

The White Rodgers 3L05-1 Snap Disc Limit Control is a reliable, adjustable thermostat designed for precise temperature regulation in HVAC systems. It features a temperature range of 135°F to 175°F with a 40°F differential and operates on a Single Pole Single Throw (SPST) mechanism that opens on temperature rise.Key Specifications:

• Temperature Range: 135°F to 175°F
• Differential: 40°F
• Switch Action: Open on rise (automatic reset)
• Electrical Ratings:
  • Full Load Amps: 14A @ 120VAC, 10A @ 240VAC
  • Locked Rotor Amps: 72A @ 120VAC, 60A @ 240VAC
  • Pilot Duty: 125 VA @ 120/240VAC
• Connection Type: ¼" quick-connect terminals
• Mounting: Flanged airstream mount with standard ¾" disc diameter

This control is ideal for use in electric heaters, fan systems, and other applications requiring dependable temperature management. Its adjustable set point simplifies inventory by replacing multiple fixed-temperature controls.Available now at Beenimax.com – your trusted source for HVAC replacement parts.
