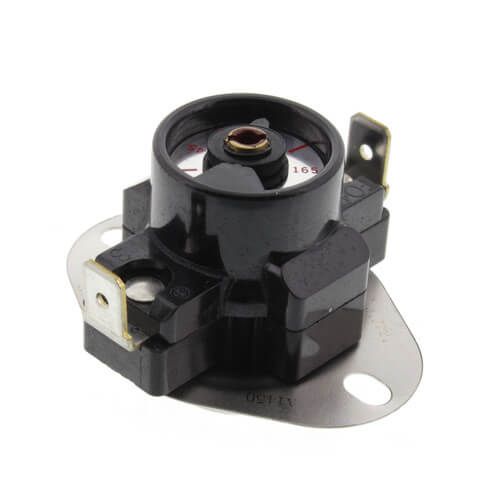

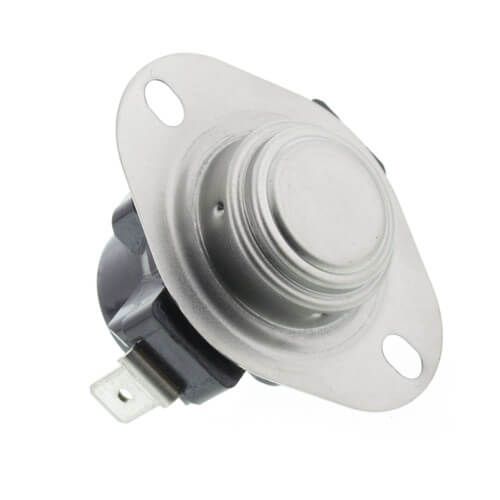

The White Rodgers 3L05-10 is a dependable, adjustable snap disc limit control designed for temperature regulation in HVAC systems and heating equipment. With its open-on-rise functionality and automatic reset, it provides reliable protection and consistent temperature control across various applications.Key Features & Specifications:

• Temperature Range: Adjustable from 135°F to 175°F (57°C to 79°C)
• Differential: Fixed 20°F
• Switch Action: SPST (Single Pole, Single Throw), opens on temperature rise
• Reset Type: Automatic
• Mounting: Flanged airstream mount with 1⅝" hole spacing
• Terminals: ¼" quick-connect
• Electrical Ratings:
  • 120 VAC: 14A full load, 72A locked rotor
  • 240 VAC: 10A full load, 60A locked rotor
  • Pilot Duty: 125 VA at 120/240 VAC
• Compliance: California Proposition 65 warning

This control is ideal for electric heaters, furnaces, and systems requiring dependable temperature monitoring. Its adjustable setpoint and automatic reset offer flexible and maintenance-free operation. Available now at Beenimax.com.
