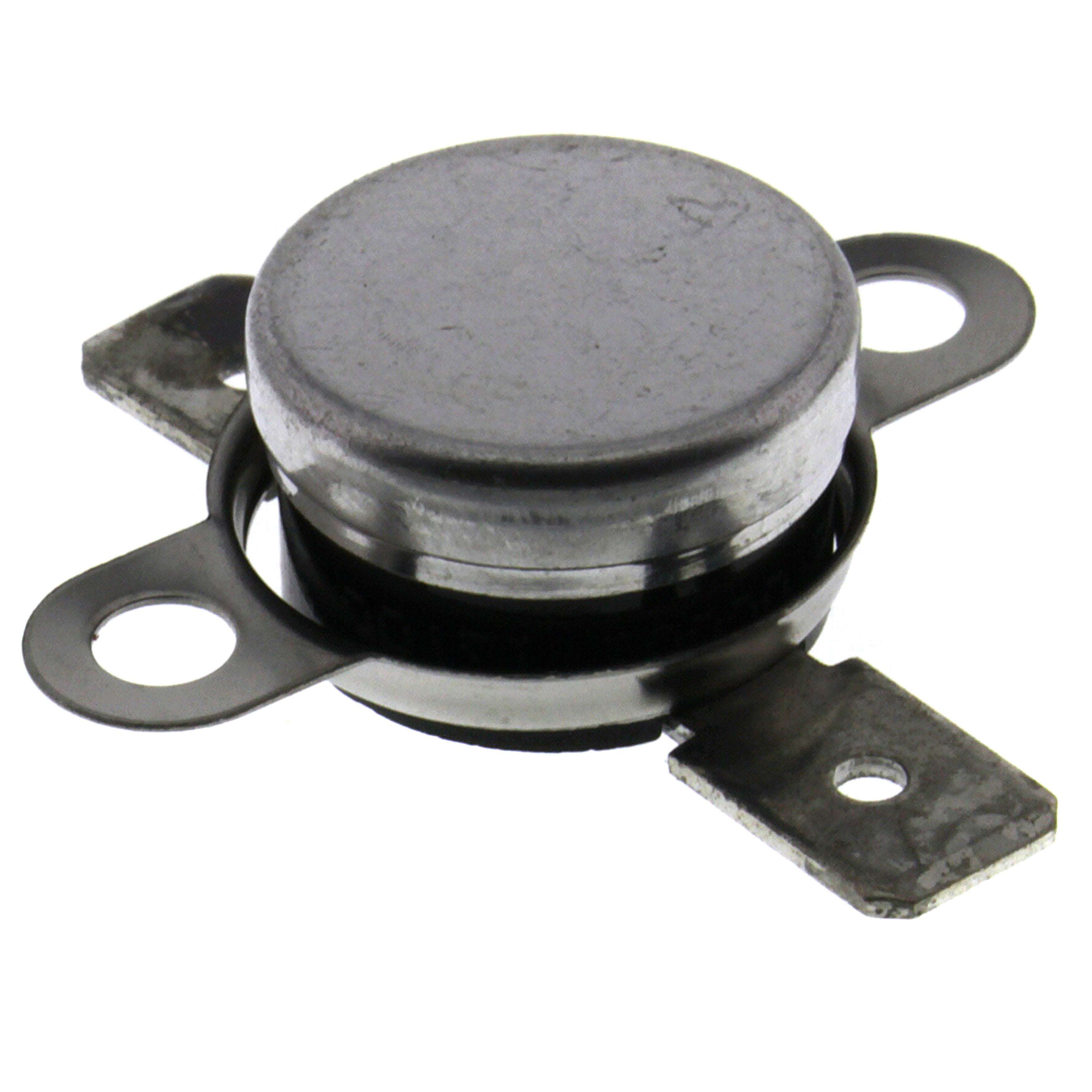

The White Rodgers 3L11-210 is a ½-inch bimetal snap-disc limit control designed to open on temperature rise within the range of 204°F to 216°F. This thermostat provides reliable over-temperature protection, making it an ideal solution for HVAC and appliance applications that demand precision and durability.Key Specifications:
- Temperature Range: Opens between 204°F and 216°F
- Differential: 30°F
- Switch Type: Single Pole, Single Throw (SPST)
- Switch Action: Open on Rise
- Reset Type: Automatic
- Electrical Ratings:
- 15A @ 120 VAC (resistive)
- 10A @ 240 VAC (resistive)
- 3.0 FLA / 12.0 LRA @ 120 VAC (inductive)
- 1.5 FLA / 6.0 LRA @ 240 VAC (inductive)
- 125 VA pilot duty
- Terminals: ¼" quick-connect
- Mounting: Loose ring with stainless steel brackets
- Construction: Aluminum disc cup
- Dimensions:
- Length: 1.23"
- Width: 1.32"
- Height: 0.37"
- Certifications: UL Recognized (File #E19279), CSA Certified (File #LR77886/LR109556)
