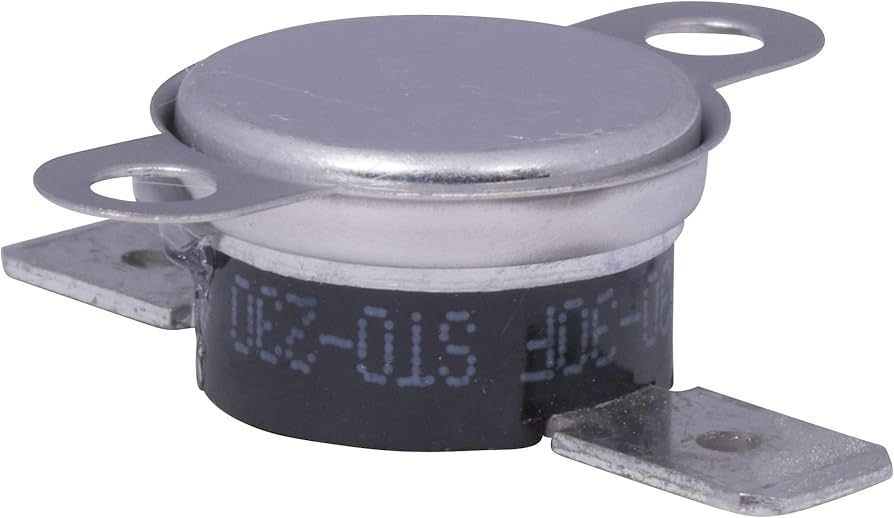

The White-Rodgers 3L11-325 is a high-limit snap disc thermostat engineered for precise thermal regulation in HVAC and appliance systems. Designed to open on temperature rise, it delivers dependable overheat protection in high-temperature applications.Specifications:

• Temperature Range: Opens between 315°F and 335°F (157°C to 169°C)
• Differential: 50°F (28°C)
• Switch Type: Single Pole, Single Throw (SPST)
• Switch Action: Open on rise
• Electrical Ratings:
  • 15A @ 120 VAC (resistive)
  • 10A @ 240 VAC (resistive)
  • 3.0 FLA / 12.0 LRA @ 120 VAC (inductive)
  • 1.5 FLA / 6.0 LRA @ 240 VAC (inductive)
  • 125 VA pilot duty
• Reset Type: Automatic
• Terminals: 1/4" quick-connect
• Mounting: Loose ring, stainless steel brackets
• Dimensions: 1.23" (length) x 1.32" (width) x 0.37" (height)
• Weight: 0.2 oz
• Certifications: UL Recognized, CSA Certified, VDE Licensed

This control is ideal for use in furnaces, heaters, and other high-heat HVAC equipment, offering long-term performance with its automatic reset and durable construction.Now available at Beenimax — your reliable source for genuine White Rodgers HVAC parts.
