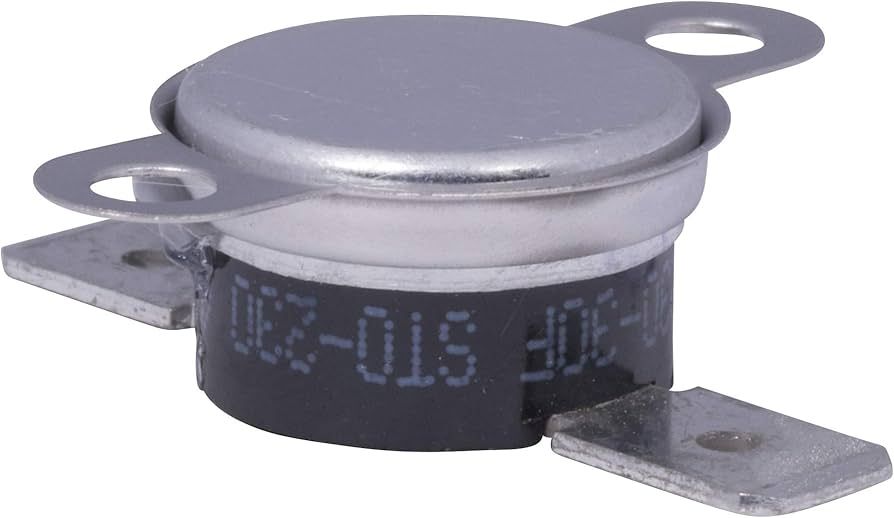

The White Rodgers 3L11-60 is a reliable bimetal disc thermostat designed for low-temperature limit applications in HVAC and appliance systems. With an open-on-rise action at a calibrated range of 55°F to 65°F, it provides accurate temperature protection for systems that require interruption of electrical flow as temperatures increase.Specifications:

• Temperature Range: Opens between 55°F and 65°F (13°C to 18°C)
• Differential: 20°F
• Switch Type: SPST (Single Pole, Single Throw)
• Action: Opens on temperature rise
• Reset Type: Automatic
• Electrical Ratings:
  • 15A @ 120VAC resistive
  • 10A @ 240VAC resistive
  • 3.0 FLA / 12.0 LRA @ 120VAC
  • 1.5 FLA / 6.0 LRA @ 240VAC
  • 125 VA pilot duty
• Terminals: ¼" quick-connect
• Mounting: Loose ring stainless steel bracket
• Housing: Aluminum disc cup
• Dimensions: 1.23" L × 1.32" W × 0.37" H
• Weight: 0.2 oz
• Certifications: UL Recognized, CSA Certified

Applications:

• HVAC systems
• Appliances
• Industrial heating and cooling
• Process control
• Energy management systems

Engineered for durability and fast thermal response, the White Rodgers 3L11-60 ensures optimal protection and performance. Available now at Beenimax.
