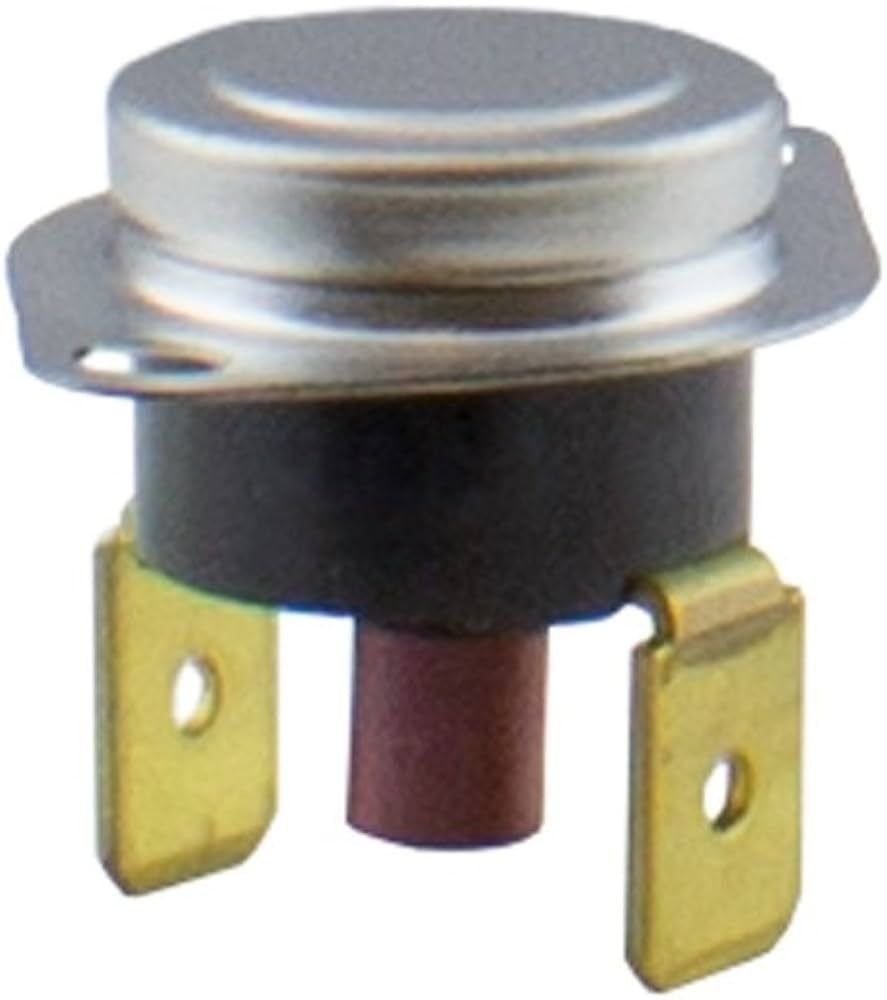

The White Rodgers 3L12-230 is a 1/2" SPST manual reset flame rollout switch designed to enhance safety in gas-fired heating systems by detecting and responding to abnormal flame conditions. With a 230°F cut-out temperature, it interrupts burner operation to prevent overheating and potential system damage.Key Specifications:

• Cut-Out Temperature: 230°F
• Switch Type: Single Pole Single Throw (SPST), Open on Rise
• Reset Mechanism: Manual reset required after trip
• Terminals: 1/4" quick-connect
• Mounting: 1/2" snap disc with stainless steel bracket
• Orientation: 90° to mounting hole
• Construction: Stainless steel disc cup for durability
• Typical Applications: Gas furnaces, unit heaters, and rooftop units

This switch is part of the White Rodgers 3L12 series, known for reliable performance in HVAC safety applications. Its manual reset feature ensures that any flame rollout issues are addressed before the system is restarted, providing an added layer of safety.Available now at Beenimax.com – your trusted source for HVAC replacement parts.
