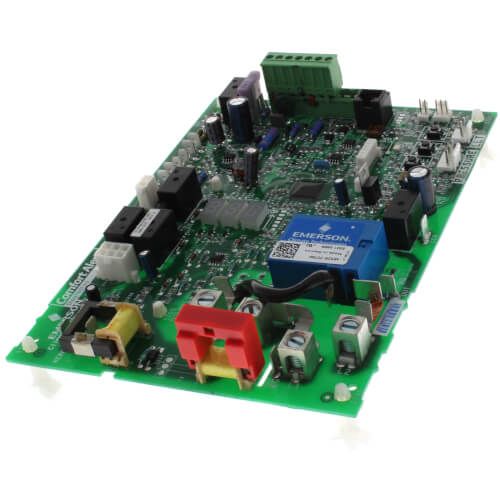

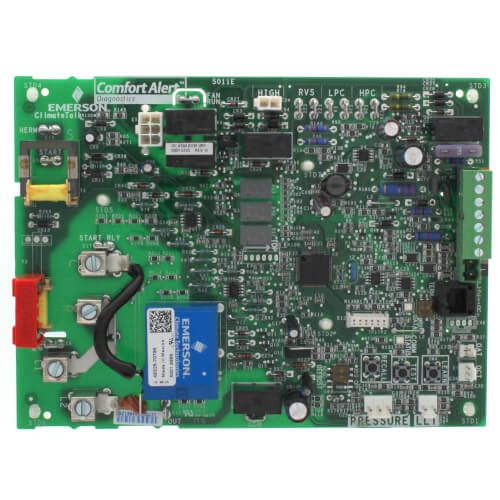

The White Rodgers 49S25-707 is a versatile two-stage air conditioning and heat pump control module, engineered to enhance performance and reliability in residential HVAC systems. This board is compatible with both PSC (Permanent Split Capacitor) and ECM (Electronically Commutated Motor) outdoor fan motors, making it ideal for single-phase compressors up to 5 tons.Key Features:

• Two-Stage Operation: Supports two-stage cooling or heat pump systems for better energy efficiency and indoor comfort.
• Motor Compatibility: Operates with both PSC and ECM outdoor fan motor systems.
• System Integration: Compatible with both 4-wire communicating systems and legacy 24 VAC input systems.
• Diagnostics: Includes a 7-segment diagnostic LED display for fast and accurate troubleshooting.
• Flexible Setup: Cuttable jumper settings provide adaptability for different system configurations.

Technical Specifications:

• Operating Temperature: -40°F to 158°F (-40°C to 70°C)
• Humidity Range: 5% to 70% RH
• Input Voltage: 24 VAC, 60 Hz
• Max Input Current: 200 mA at 25 VAC

Relay Ratings:

• Compressor Relay: 33.6 RLA / 175 LRA @ 240 VAC
• Outdoor Fan Relay: 2.8 RLA / 5.0 LRA @ 240 VAC
• Crankcase Heater: 0.5 A @ 240 VAC
• Auxiliary Heat: 1 A @ 24 VAC (pilot duty)
• Reversing Valve: 1 A @ 24 VAC (pilot duty)

This control board is a dependable choice for HVAC professionals managing two-stage A/C or heat pump systems. Its wide compatibility and robust feature set make it ideal for both new installations and retrofit projects.Available now at Beenimax.com — your trusted source for HVAC parts and components.
