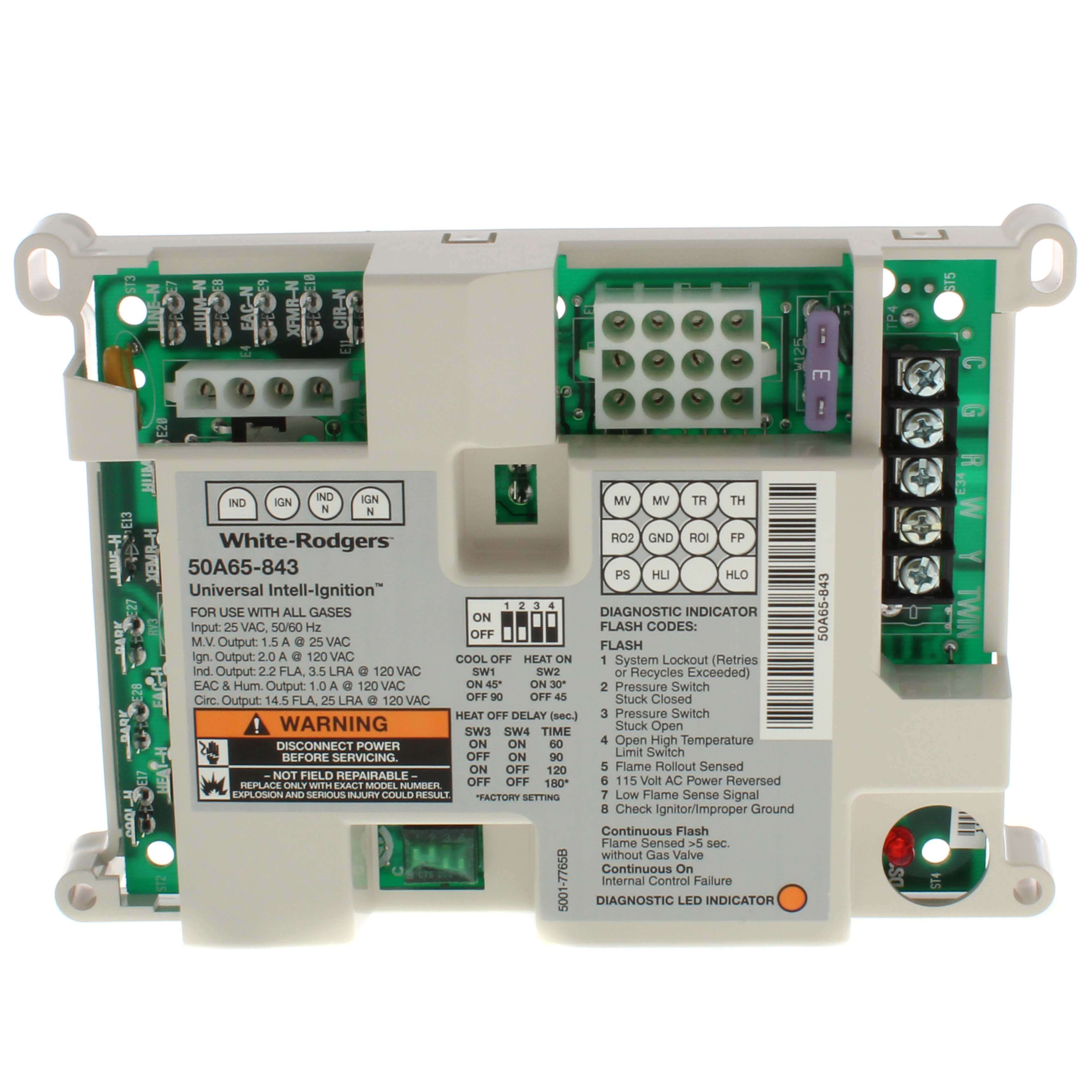

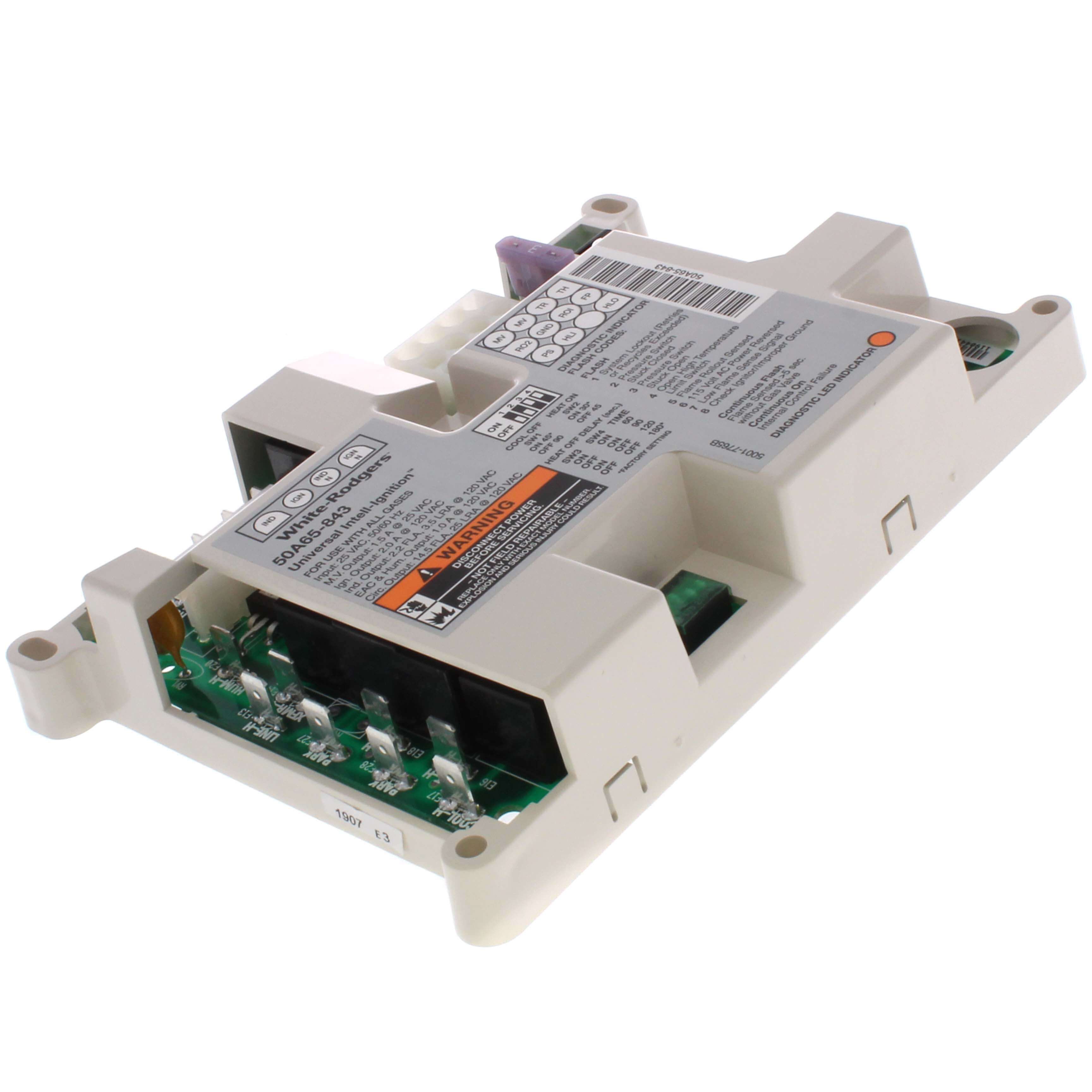

White Rodgers 50A65-843 - Universal Nitride Ignition Furnace Control
White Rodgers 50A65-843 - Universal Nitride Ignition Furnace Control
The White Rodgers 50A65-843 is a versatile integrated furnace control module designed to manage key HVAC functions including the gas valve, ignitor, blower, inducer, humidifier, and air cleaner. With universal compatibility, it serves as a dependable replacement for numerous OEM models across brands such as Trane, York, ICP, and Amana.
Key Features:
- Universal Compatibility: Replaces multiple White Rodgers and OEM models, including 50A65-120, 50A65-143, 50A65-288, 50A65-474, and 50A65-475.
- Integrated System Management: Controls ignition, blower, inducer, and auxiliary components for seamless operation.
- LED Diagnostics: On-board LED provides system status and error codes to streamline troubleshooting.
- Enhanced Safety: Features a replaceable 3A fuse and 60-minute auto-reset for system protection.
- Single Channel Flame Sensing: Reliable flame detection ensures safe furnace performance.
Technical Specifications:
- Ignition Type: Intermittent Hot Surface Pilot
- Input Voltage: 25 VAC, 50/60 Hz
- Max Input Current: 0.45 A
- Valve Relay: 1.5 A @ 25 VAC, 50/60 Hz, 0.6 PF
- Ignitor Relay: 6.0 A @ 120 VAC (resistive load)
- Inducer Relay: 2.2 FLA / 3.5 LRA @ 120 VAC
- Circulator Relay: 14.5 FLA / 25.0 LRA @ 120 VAC
- Operating Temperature Range: -40°F to +175°F (-40°C to +79°C)
- Humidity Range: 5% to 93% RH (non-condensing)
Available now at Beenimax.com – your trusted source for HVAC replacement parts.
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
