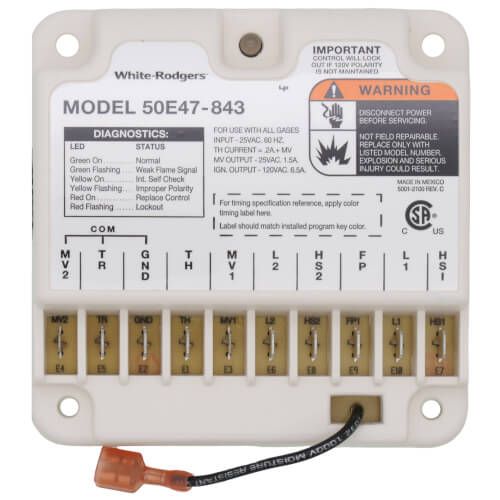

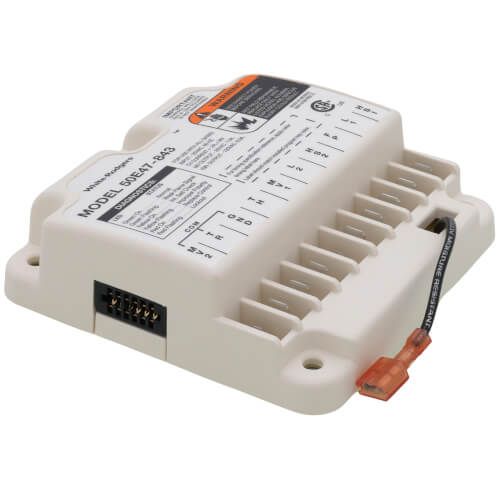

White Rodgers 50E47-843 - Universal Silicon Carbide Non-Integrated Replacement Module
White Rodgers 50E47-843 - Universal Silicon Carbide Non-Integrated Replacement Module
Ignition Furnace Module Kit
Type Universal, Non-Integrated
Fuel Type Natural, Manufactured, Mixed, Liquefied Petroleum and Liquid Propane Gas Air Mixture
Flame Sense Type Direct/Indirect
Ignition Source Silicon Carbide Igniter
Ignition Trial Time 4 Second
Prepurge Time 30 Second
Valve Rating 0.6 Power Factor, 1.5 Amp at 25 Volt AC 60 Hertz
Power Rating 18 to 30 Volt AC at 60 Hertz
Size 4.13 Inch Width x 1.5 Inch Depth x 4.13 Inch Height
Temperature Rating -40 to 175 Deg F
Application Gas Fired Forced Air Furnace and Boiler
Nominal Voltage 25 Volt AC
Maximum Input Current 200 Milliamp
Igniter Rating 6 Amp at 120 Volt AC 50/60 Hertz (Resistive)
Interpurge Timing 45 Second
Includes Program Key, Mounting Hardware, Double Sided Foam Back Tape, Color Coded Timing Label, Pre-Printed Hanging Carton
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
