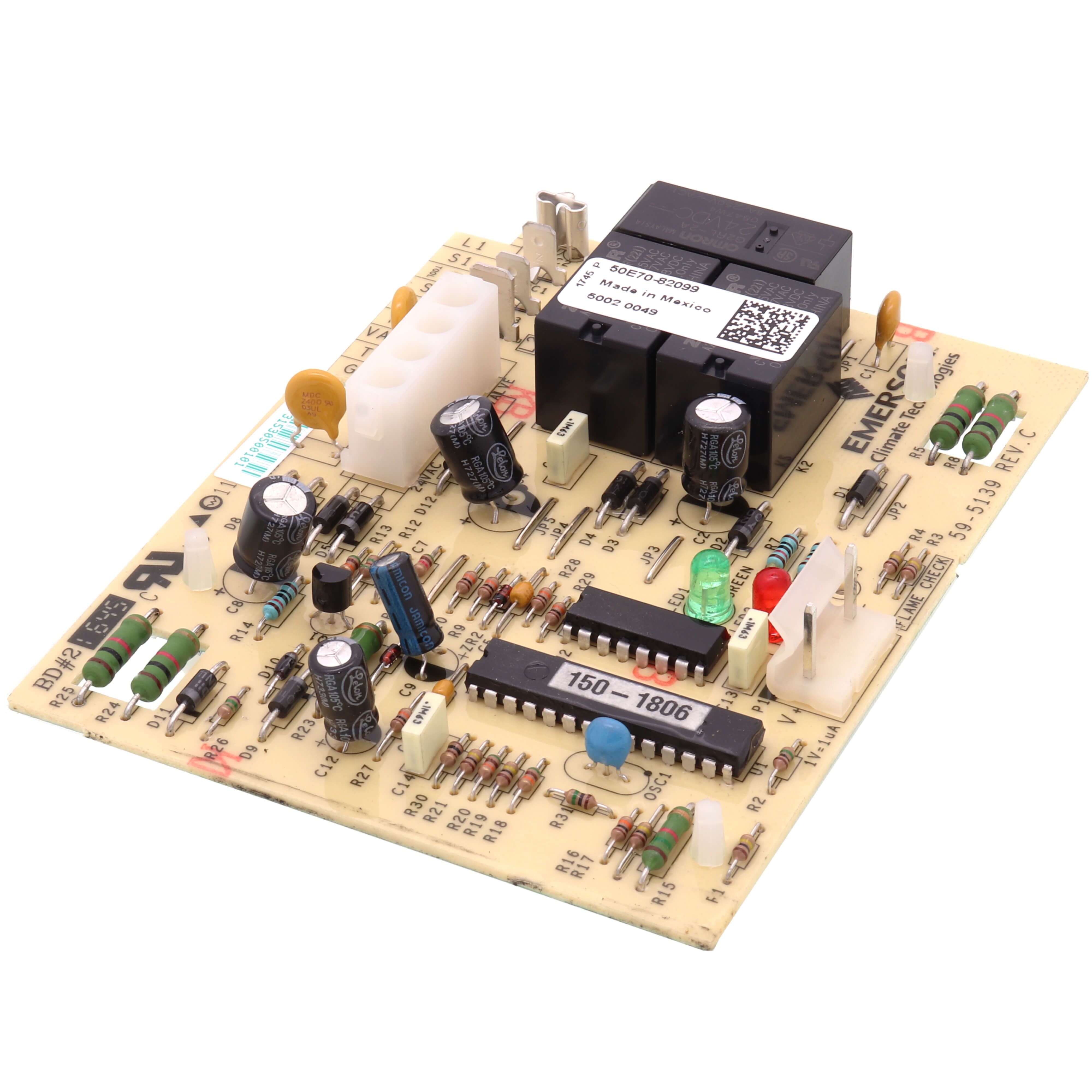

The White-Rodgers 50E70-820 is a non-integrated hot surface ignition (HSI) control module, engineered as a direct replacement for Trane commercial rooftop and packaged HVAC systems. This module governs the ignition process to ensure safe and reliable furnace operation, without managing blower or fan functions.Key Features:

• Designed for single-stage heating systems
• Hot Surface Ignition (HSI) with 120 VAC ignitor voltage
• Input Voltage: 18 to 30 VAC, 60 Hz
• Mounting via standoffs or included adapter board
• Diagnostic red and green LED indicators
• Flame current test pins for easy flame signal monitoring
• Includes adapter board and wiring harness for streamlined installation

Technical Specifications:

• Operating Temperature Range: -40°F to 175°F (-40°C to 79°C)
• Humidity Range: 0% to 95% RH (non-condensing)
• Ignitor Warm-Up Time: 45 seconds
• Flame Establishing Time: 0.8 seconds
• Flame Failure Response Time: 2.0 seconds
• Automatic Reset Time: 60 minutes
• Gas Valve Relay Rating: 1.5 A at 30 VAC (0.6 power factor)
• Ignitor Relay Rating: 5.0 A max at 132 VAC
• Minimum Flame Current for Detection: 1 µA DC
• Maximum Flame Current for Non-Detection: 0.1 µA DC
• Maximum Allowable Leakage Resistance: 100 MΩ

Compatibility:

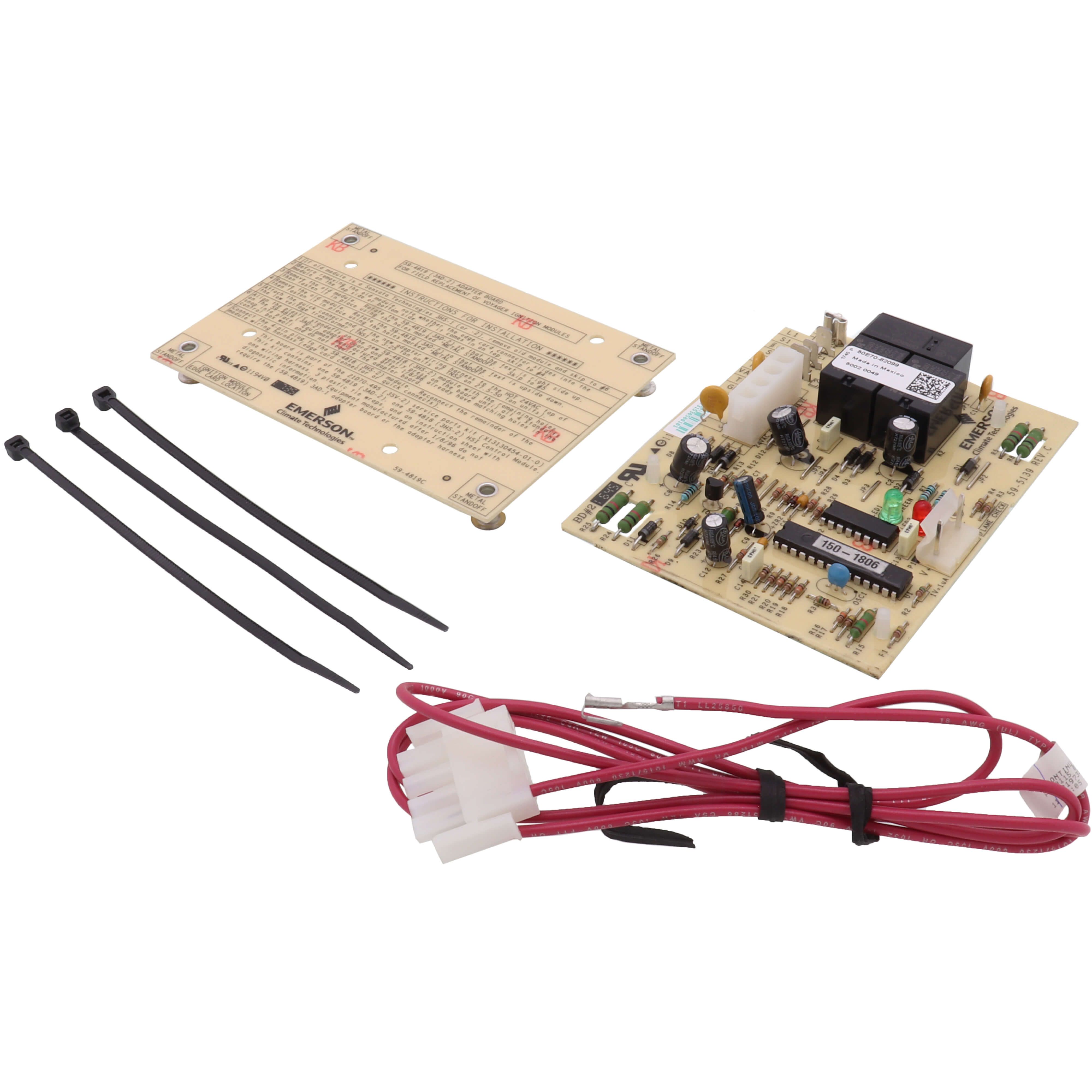

This control is a direct replacement for Trane Kit 17852 and is designed specifically for use in commercial HVAC systems such as packaged rooftop units.Kit Includes:

• 50E70-820 Control Module
• 24 VAC Wiring Harness (0155-0263)
• Adapter Board (59-4819)
• Fault Code Label
• Installation Instructions

Ensure consistent ignition performance and safe furnace operation with the White-Rodgers 50E70-820.Now available at Beenimax – your trusted source for HVAC replacement parts.
