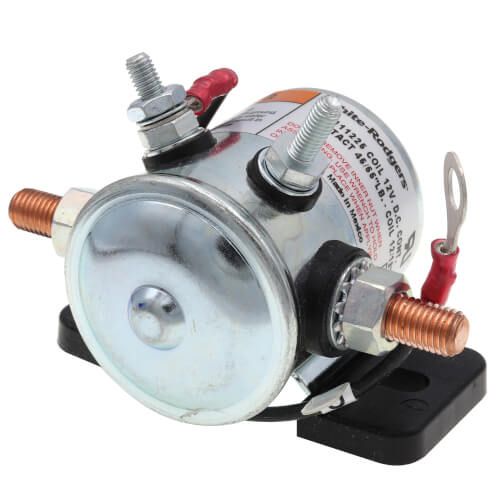

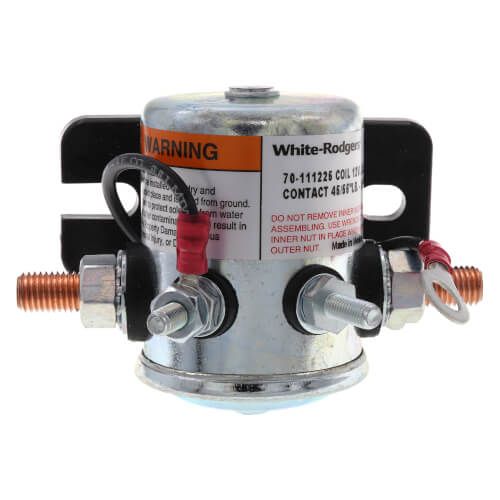

The White Rodgers 70-111225 is a high-performance DC solenoid engineered for continuous-duty applications requiring reliable, high-current switching. Designed with a Single Pole Normally Open (SPNO) configuration and a 12 VDC coil grounded to the case, this solenoid is ideal for use in HVAC, automotive, and industrial control systems.Built for longevity and reliability, this model handles high inrush and continuous current with ease. It features a rugged design that supports vertical mounting and dependable operation across a wide temperature range.

Key Specifications:

• Part Number: 70-111225
• Coil Voltage: 12 VDC
• Configuration: SPNO (Single Pole, Normally Open)
• Coil Grounding: Grounded to case
• Duty Cycle: Continuous
• Continuous Contact Rating: 80 Amps
• Inrush Current: 150 Amps
• Coil Resistance: 16 ohms
• Operating Temperature Range: -40°F to 149°F
• Mounting Orientation: Vertical
• Coil Terminal Torque: 12–18 inch-lbs
• Contact Terminal Torque: 45–55 inch-lbs
• Application: Heating systems, HVAC controls, automotive, industrial

Count on the White Rodgers 70-111225 solenoid for high-performance switching in demanding conditions.
