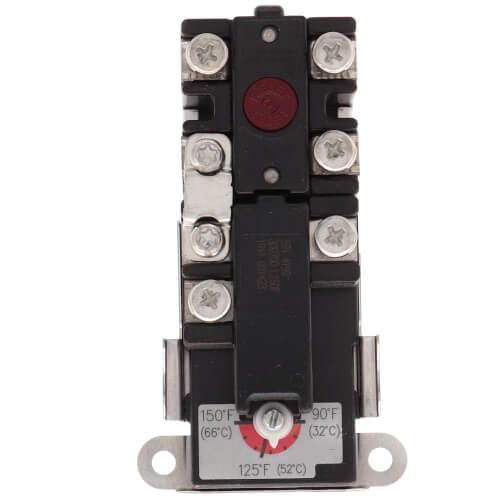

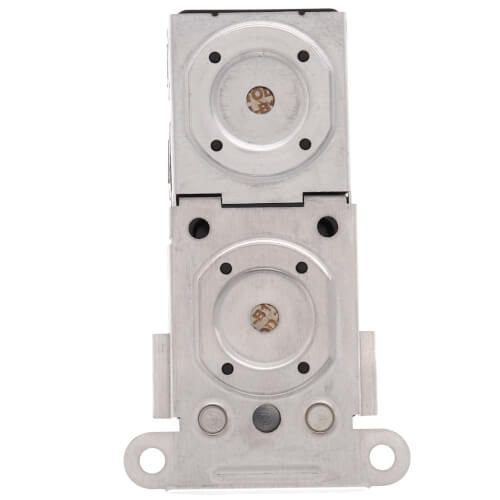

The White Rodgers 756-50 is a surface-mounted combination limit and thermostat control, engineered for precise temperature regulation in electric water heaters and HVAC systems. It features a fixed temperature differential of 17°F to 27°F, delivering consistent performance and reliable system protection.Specifications:
- Thermostat Temperature Range: 90°F to 150°F
- Limit Temperature: Fixed at 170°F
- Switch Action: Opens on temperature rise
- Electrical Ratings:
- 30.0A at 120/240 VAC
- 25.0A at 277 VAC
- 12.5A at 480 VAC
- Mounting Type: Surface mount
- Control Configuration: DPST Limit and SPDT Thermostat
- Features:
- Snap-action contacts for dependable operation
- High electrical capacity for demanding applications
- Long service life with proven durability
- Available in adjustable control or manual reset styles
